MK-020 Knee Prosthesis

MK-020 Knee Prosthesis

customer: ORTOS
We got a request to redesign a knee prosthesis and have developed its serial production process.

problem

Representatives of ORTOS company, one of the biggest Siberian prosthesis production and rehabilitation centers (Berdsk, Novosibirsk region), came to Uniscan Research team with a request to redesign one of their products. We had to give a new look to the MK-020 knee prosthesis by keeping its initial performance capabilities.


solution

At the time, the existing knee prosthesis looked in the following way

МК-020





















The team of designers, product and manufacturing engineers presented a new variant of the knee prosthesis providing all initial mechanical and functional capabilities.

3D модель нового дизайна МК-020

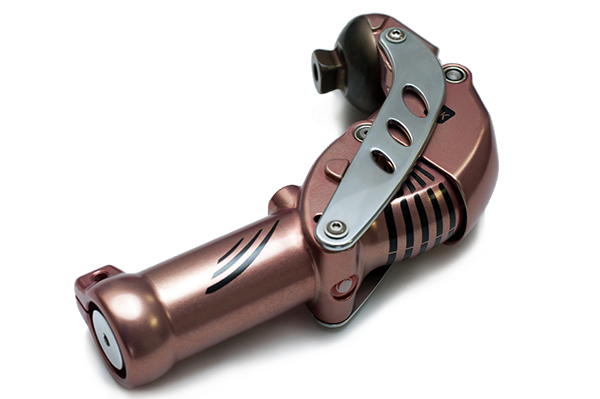

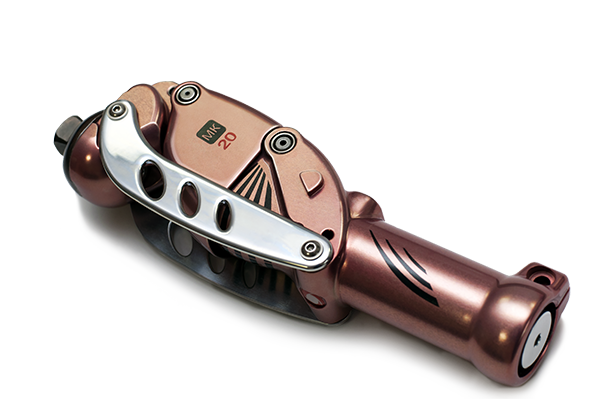

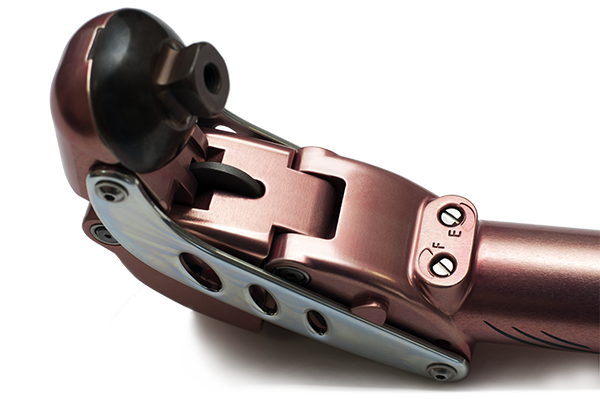

The presented prosthesis version can be manufactured by using the existing production facilities of ORTOS company with its price going up by only 10%. Uniscan Research team has carried out the full range of services from product sketches to the prototype sample. We have selected the best possible materials, carried out manufacturing, assembly and testing. As a result we got a ready for use prototype of the MK-020 knee prosthesis:

Опытный образец

Опытный образец

Опытный образец



Also, we have provided the client with the full package of design documents, a detailed manufacturing and assembly process description, a list of contractors and material distributors to launch manufacturing of the product.


team
Manager — Anton Ryadinsky
Tech Lead — Alexey Avtushenko
Designer — Aleksandr Mokrienko
Analyst — Anton Zaharov
